Thermal-Insulating Entrance Door System SUPREME SD115

Alumil opens up new horizons in contemporary architectural design for homes and commercial spaces, thanks to the innovative design of the SUPREME SD115 Pivot series, which allows for oversized entrance doors and gives prestige and elegance to the building’s facade, while preserving a minimalist character and flush surfaces.

The SUPREME SD115 Pivot system creates a new sense of light diffusion and connection between the exterior and interior environment of the space, making it unique in design and innovation.

The advanced design, combined with the complete technological fittings of the system, ensure the creation of entrance doors of high aesthetic level, with exceptional quality and outstanding performance in terms of security, insulation, and functionality.

Advantages

  • Excellent level of security

  • Modern appearance

  • Maximum energy savings thanks to very high thermal performance

  • Easy access in use, with specifications for people with disabilities (ADA) and children

  • Exceptional sound insulation

  • Ease of operation and high functionality

General Features

Thermal-insulating

Yes

Exterior appearance

Flat / flush

Surface finishes

Electrostatic paint; Full powder coating; Gloss anodized; Anodized colors; Dual-color finishes

Construction types

Flush single-leaf entrance doors

Thermal insulation U-factor

from 0.75 W/m²K

Leaf depth (thickness of the door slab)

115 mm

Leaf weight

up to 250 kg

Minimum visible construction height

70 mm

Technical Features

Frame depth

115 mm

Maximum glazing thickness

115 mm

Mechanism

Multi-point lock

Type of sealing

Perimeter three-level EPDM rubber gaskets

Minimum sill (threshold) height

7 mm

Type of thermal insulation

34 mm wide polyamide strips; Alumil Energy Bar; foam insulating material

Performance

Burglar resistance class

RC3

Related Files

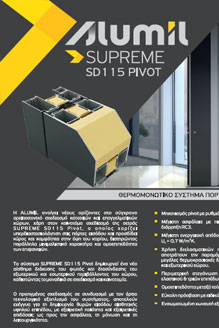

Brochure
